How to Configure Site to Site VPN

Site to Site VPN Configuration:

This phase identifies tips on how to operate the safety appliance to make a site-to-site VPN.

Site-to-site VPN features offered by the particular safety appliance help organizations to increase their particular sites across low-cost open public Internet connections to business partners and out of the way office buildings worldwide whilst keeping their particular system safety. A VPN connection means that you can mail data from spot to another spanning a protected connection, as well as tunnel, 1st through authenticating equally concludes with the connection, after which it through routinely encrypting many data dispatched between the a couple sites.

Site to Site VPN Network Topology:

Information to have available:

Before beginning the actual construction process, gather the next data:

IP deal with from the distant safety appliance fellow

IP addresses connected with regional hosts and systems allowed to utilize the actual tunnel for you to talk to assets within the distant internet site

IP addresses connected with distant hosts and systems allowed to utilize the actual tunnel for you to talk to regional assets.

Configuring the site to site vpn:

Note:

Remember to add the "s" in "https" or the connection fails. HTTPS (HTTP over SSL) provides a secure connection between your browser and the security appliance.

Note:

Your safety machine on the primary website is called Security Equipment 1 because of this position forwards.

To help configure the actual Security Equipment 1, accomplish the following steps:

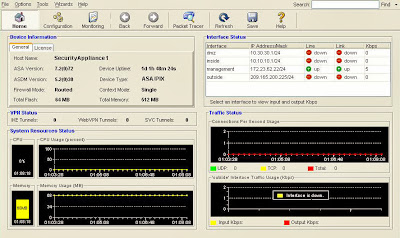

In the primary ASDM eye-port, select the VPN Wizard option from the Wizards drop-down food list. ASDM starts the very first VPN Wizard monitor.

With Stage hands down the VPN Wizard, conduct these actions:

A) Click on the Site-to-Site VPN radio key.

Click "Next"

Step 1) Get into this Peer IP Target (the IP deal with associated with Protection Equipment 2, on this situation 209. 165. 2 hundred. 236) along with a Tunnel Group Label (for case "Cisco").

Step 2) Designate the sort of authentication that you want to utilize by means of executing one of several following measures:

•To make use of a static preshared key for authentication, click the Pre-Shared Essential radio option along with get into some sort of preshared key (for case, "Cisco"). This key can be used for IPsec negotiations on prices involving the safety kitchen appliances.

Note When an individual configure Protection Equipment 2 at the rural web page, this VPN expert is Protection Equipment 1. Make sure to get into the same preshared key (Cisco) that you just employ the following.

•Click this Challenge/Response Authentication radio option to utilize in which method of authentication.

•To employ digital accreditation for authentication, click the Document radio option, opt for the Document Deciding upon Formula through the drop-down checklist, then opt for a preconfigured trustpoint label through the drop-down checklist.

In order to employ digital accreditation for authentication yet have not still configured some sort of trustpoint label, you can go on with all the Magician by employing one of several some other a couple of alternatives. You are able to modify this authentication construction later with all the normal ASDM screens.

Configuring the IKE policy:

IKE is really a negotiation process that features an encryption approach to shield facts and make certain comfort; it is additionally an authentication approach to ensure the id with the peers. Typically, the actual ASDM default values are usually enough to ascertain safe VPN tunnels concerning two peers.

Throughout 3 with the VPN Wizard, conduct the subsequent methods:

Step 1  Click the actual Encryption (DES/3DES/AES), authentication algorithms (MD5/SHA), and also the Diffie-Hellman collection (1/2/5) employed by the actual stability product throughout an IKE stability relationship.

Click "Next"

Specifying Hosts and Networks:

Identify website hosts and also networks with the community site which have been acceptable to use that IPsec tube to contact your remote-site expert. Put or maybe eliminate website hosts and also networks dynamically by simply clicking Put or maybe Delete, respectively. In the current circumstances, targeted visitors coming from Network A new (10. 10. 10. 0) is usually encrypted by simply Protection Machine 1 and also transmitted from the VPN tube.

Also, recognize website hosts and also networks with the out of the way site to be allowed to take advantage of this IPsec tube to reach community website hosts and also networks. Put or maybe eliminate website hosts and also networks dynamically by simply clicking Put or maybe Delete respectively. In this particular circumstances, regarding Protection Machine 1, your out of the way network is usually Network W (10. 20. 20. 0), thus targeted visitors encrypted from this network is usually acceptable from the tube.

Step 1 In the cause area, pick IP Handle on the Variety drop-down number.

Step 2 Enter a nearby IP deal with and also netmask inside the IP Handle and also Netmask areas.

Step 3 In the Destination area, pick IP Handle on the Variety drop-down number.

Step 4 Enter the IP deal with and also Netmask for your out of the way number or circle.

Click "Next"
